The Layers of Earth – A Journey to the Center of the Planet

Imagine you are an explorer, setting out on a journey not across the surface of the Earth but deep inside it. You start at the very ground beneath your feet and begin descending layer by layer, uncovering the hidden secrets of our planet’s interior. Let’s embark on this fascinating expedition together!

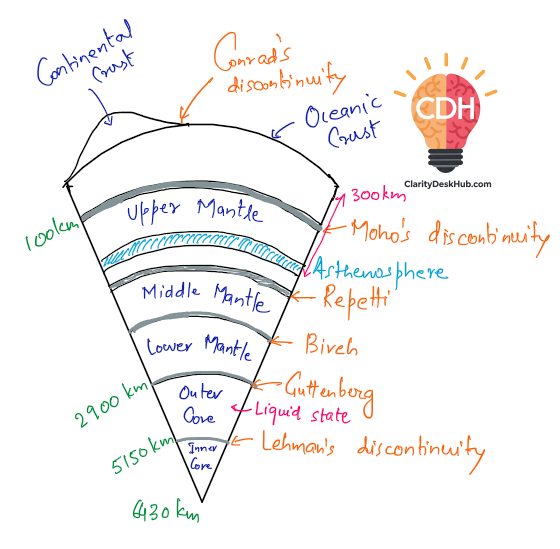

From seismic studies, we now know that Earth isn’t a uniform mass. It has three main layers:

The Crust – Earth’s Fragile Skin

Think of Earth as a giant apple. The crust is like the apple’s skin—thin, yet incredibly important. It is the outermost solid layer where all life exists, the very stage upon which history unfolds.

Two Faces of the Crust

Just as an apple has different textures—smooth on the outside, but rough near the stem—the Earth’s crust also varies in composition and thickness.

1. Continental Crust – The Land We Stand On
   • It is thicker (30–80 km), like a deep-seated tree root.
   • Made of lighter rocks like granite, diorite, and andesite.
   • Density: 2.7 to 2.8 g/cm³ (relatively less dense).
2. Oceanic Crust – The Floor of the Oceans
   • Much thinner (5–10 km), resembling the shallow skin of an apple.
   • Made of denser basaltic rocks (Mafic rocks).
   • Density: 2.9 to 3.0 g/cm³.

The crust “floats” over the denser mantle like an iceberg in water. Beneath it lies a significant boundary called the Mohorovičić Discontinuity (Moho), marking the transition to the next layer.

The Mantle

As we dive deeper, the temperature and pressure rise significantly. We have now entered the mantle, which makes up nearly 84% of Earth’s volume—like the fleshy part of an apple. This is the planet’s powerhouse, controlling volcanic eruptions and plate movements.

Composition and Density

The mantle is mainly composed of silicates of magnesium and iron (Peridotite and Dunite), with an average density of 4.6 g/cm³.

Subdivisions of the Mantle

💡 Upper Mantle (100–300 km) – The Birthplace of Tectonic Activity

• At around 100 km, seismic waves (P and S waves) suddenly change speed, signaling the Moho boundary.
• Around 300 km, we encounter a mysterious region called the Asthenosphere—a partially molten, ductile zone where rock flows like hot wax. This layer is crucial as it allows tectonic plates to move above it, shaping mountains, causing earthquakes, and forming continents.

💡 Middle Mantle – The Silent Force Beneath

• This lies just below the Asthenosphere.
• It is separated from the upper mantle by the Repetti Discontinuity.

💡 Lower Mantle – The Immense Pressure Chamber

• Extends up to 2900 km below Earth’s surface.
• It is the densest part of the mantle, with increasing pressure compacting the material.
• The Biveh Discontinuity marks the transition from middle mantle to lower mantle.

---

The Core – The Heart of the Earth

At 2900 km, we finally arrive at the Earth’s core—the very engine that drives our planet’s magnetic field and heat. Imagine a glowing iron ball buried deep within Earth’s heart, constantly churning and radiating energy.

Composition and Density

The core is made primarily of iron (Fe) and nickel (Ni)—the same materials found in meteorites, supporting the idea that Earth was formed from cosmic debris. Its density is extremely high, ranging from 11 to 13 g/cm³.

Subdivisions of the Core

🔥 Outer Core (Liquid, 2900–5150 km)

• This is entirely liquid due to extreme heat.
• Seismic S-waves cannot pass through it, confirming its liquid nature.
• It is responsible for Earth’s magnetic field, generated by the dynamo effect—where the movement of molten iron creates electric currents.
• The Gutenberg Discontinuity separates it from the mantle.

💎 Inner Core (Solid, 5150–6430 km)

• Despite reaching temperatures as high as the Sun’s surface, the immense pressure keeps it solid.
• Composed of a dense Fe-Ni alloy.
• The Lehmann Discontinuity separates it from the outer core.

Why Does Earth’s Internal Structure Matter?

🌍 Seismic Waves as Earth’s X-ray:

• Just like doctors use X-rays to see inside our bodies, scientists use seismic waves from earthquakes to study Earth’s interior. The way these waves travel and change speed reveals the presence of different layers.

🧭 The Magnetic Shield:

• Without the liquid outer core, Earth would have no magnetic field, making it vulnerable to deadly solar radiation—just like Mars!

🌋 Plate Tectonics and Volcanism:

• The movement of magma in the mantle drives continental drift, earthquakes, and volcanic eruptions, continuously reshaping our world.

Conclusion – Earth as a Layered Mystery

From the crust to the core, our planet is a layered marvel—each level playing a vital role in sustaining life and shaping landscapes. Like peeling an apple, we uncovered one layer at a time, discovering how Earth’s interior governs the world above.

Next time you see mountains rise, feel the tremors of an earthquake, or witness a volcanic eruption, remember: beneath your feet lies an ever-moving, ever-changing world, hidden yet powerfully alive! 🌎🔥

References:

• Zharkov, Vladimir N., and V. A. Kalinin. Interior Structure of the Earth and Planets. Taylor & Francis, 1988.
• “The Interior of the Earth.” U.S. Geological Survey, 1997. The Interior of the Earth
• Dziewonski, Adam M., and Don L. Anderson. “Preliminary Reference Earth Model.” Physics of the Earth and Planetary Interiors, vol. 25, no. 4, 1981, pp. 297–356.
